Install
Follow the following tutorial
or download
the complete installation manual.
Sclak
FIND OUT MORE
BEFORE STARTING

Effect the operation of connecting the cables and subsequent interventions with the electrical system disconnected from the grid.

Make sure that the SCLAK device is powered at low voltage according to the technical specifications - AC-DC 12-24V.

Don't power the SCLAK device directly with the high-voltage network.

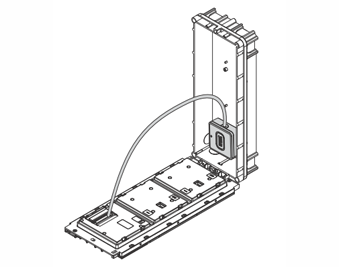

Always contact a specialized expert for installation on an intercom system.

For installation on a motorized lock always refer to the connection diagrams of the lock.

SCLAK takes no responsibility for installations that are carried out improperly by unqualified staff.

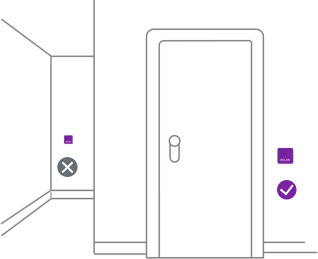

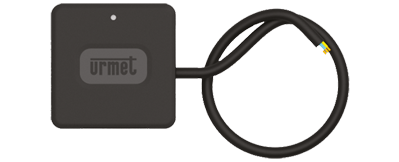

1. POSITION THE SCLAK UNIT
Place Sclak

Find the correct position to install the device, we recommend that it's in proximity of the lock to get the best performance or alternatively near the submission/control keys.

2. Insert cables
Insert cables

The power supply and connection cables can be entered into the base using the holes on the lower side (Fig.A) or on the bottom (Fig.B). After performing the previous steps, use the most appropriate method.

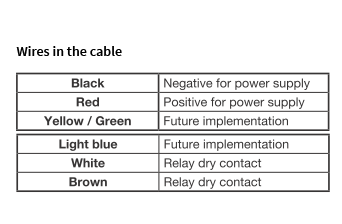

3.1 CONNECTIONS DIAGRAM - SCLAK
1. STANDARD CONNECTION
Standard connection scheme

* Normally open contact.

Use the relay contact as if it were parallel to the button (we recommend to contact a specialised expert).

If the lock isn't connected to external controls (eg door entry systems), use the diagrams 2 and 3.

Always contact a specialized expert for installation on an intercom system.

2. ELECTRO-MECHANICAL LOCK CONNECTION
Electro-mechanical lock connection scheme
3. MOTORIZED STANDARD LOCK CONNECTION
Motorized standard lock connection scheme

Use these diagrams when SCLAK is the only control to open the lock. It will still be possible to add external controls, for this operation it's advisable to contact an expert.

For installation on a motorized lock always refer to the connection diagrams of the lock.

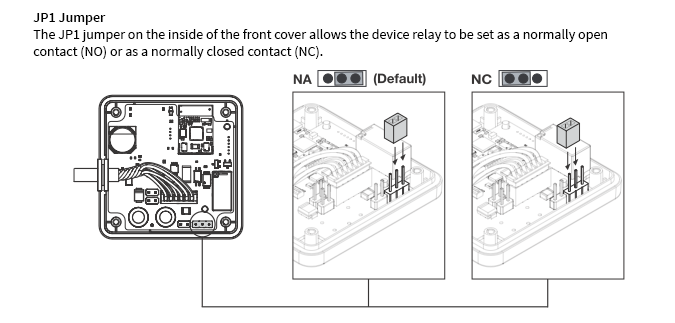

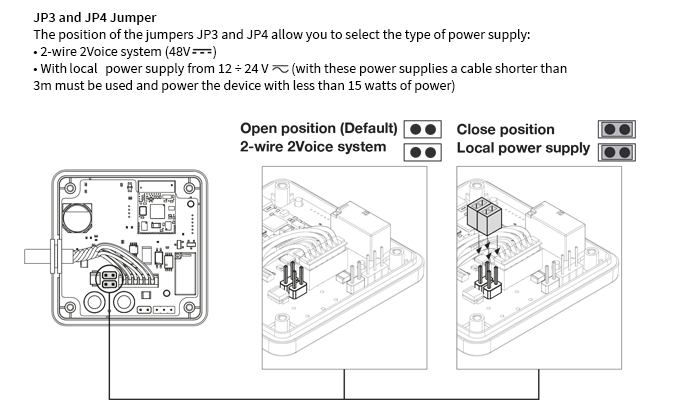

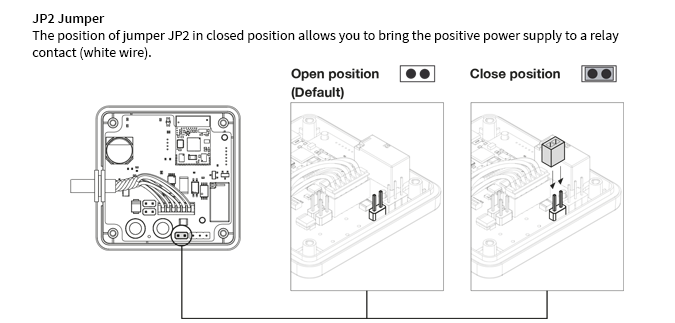

3.2 RELAY SETTINGS - SCLAK VERSION 1C
Depending on how the jumper is inserted on the connectors of the board it's possible to set the device in Normally Closed (NC) mode (fig A) or Normally Open (NO) (fig B).
Relay settings - sclak version 1C scheme
3.3 LOCK CONNECTION DIAGRAMS - SCLAK 1C VERSION
1. STANDARD CONNECTION
Standard connection scheme for lock
2. ELECTRO-MECHANICAL LOCK CONNECTION
Electro-mechanical standard lock connection scheme

Use the relay contact as if it were parallel to the button (we recommend to contact a specialised expert).

The central clamps (indicated with "IN" in the diagram) are only incoming and are used to connect sensors (eg open - closed)

3.4 ENTRANCE FOR THE STATUS SENSOR - SCLAK VERSION 1C
The following connections are made to be used only when it's necessary to report the status of the lock (open - closed).
1. SIGNAL WITH POWER SUPPLY
Status sensor
2. SIGNAL WITH CLOSING IN POWER SUPPLY
Signal with closing in power supply sensor
3. SIGNAL WITH CLOSING A MASS
Signal with closing a mass sensor
SEE INSTRUCTIONS
1. Download App
Download App

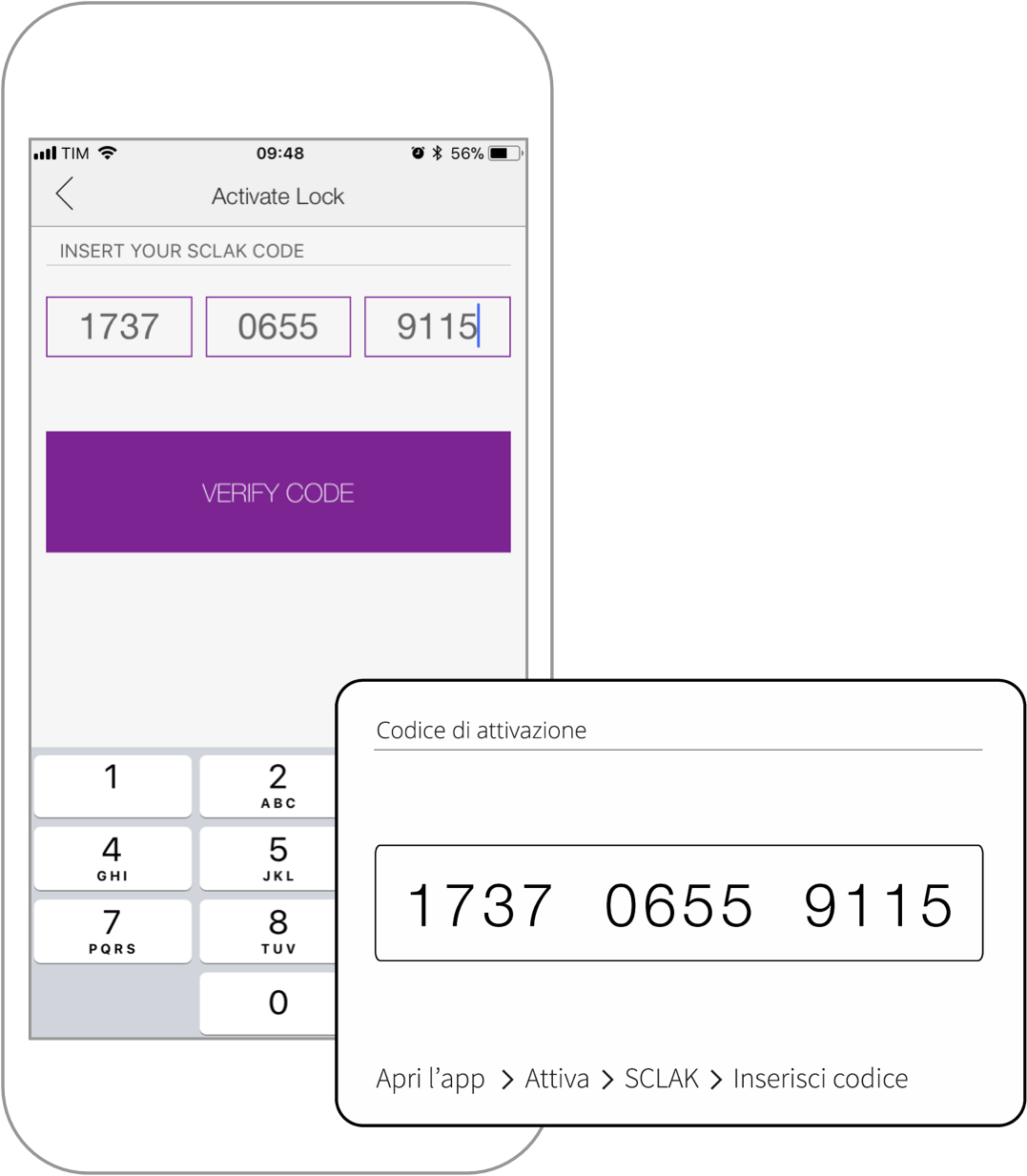

2. Insert code
Activation code

Enter the twelve-digit Activation Code inside the package.

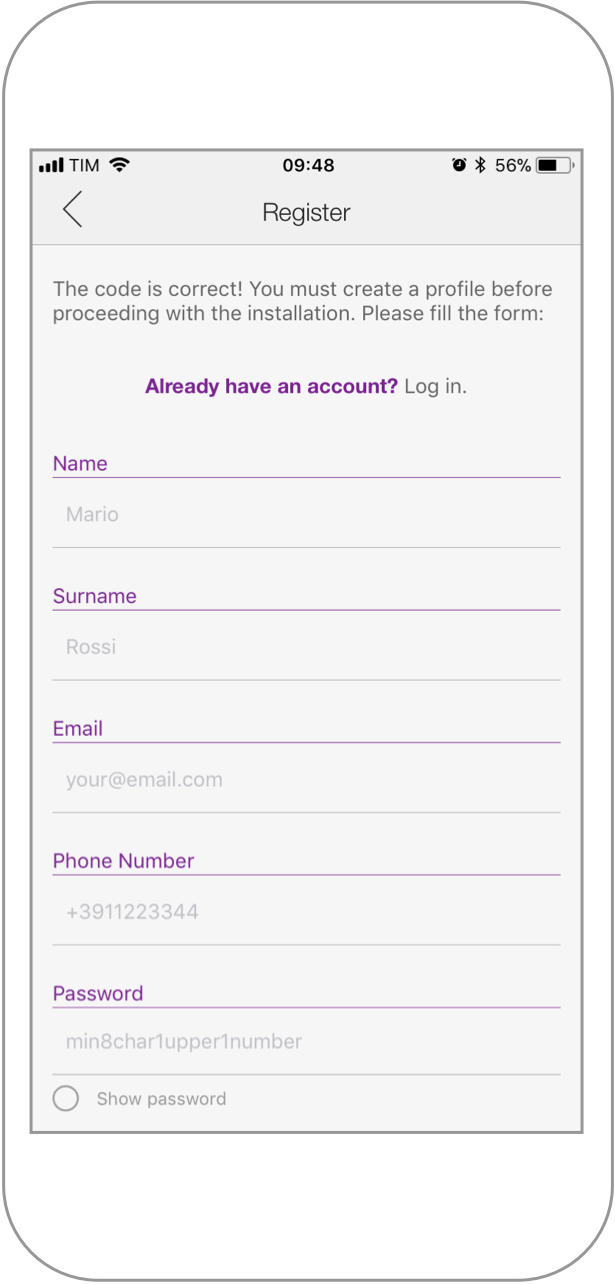

3. Create account
Create account

Enter the required credentials.

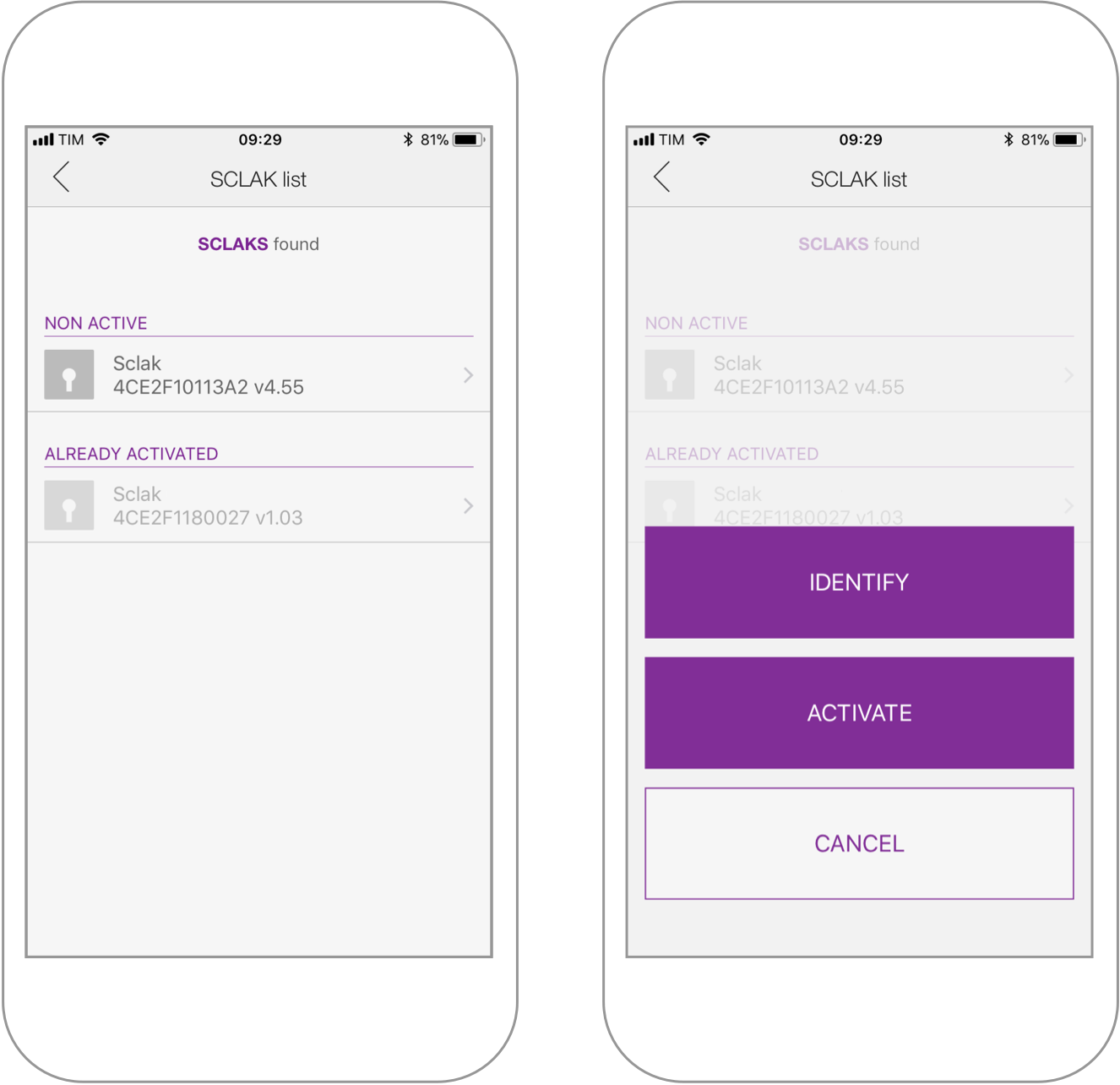

4. Identify
your SCLAK unit
Identify your SCLAK unit

Select SCLAK unit that appears in the TO BE ACTIVATED list and tap on to continue the installation process.

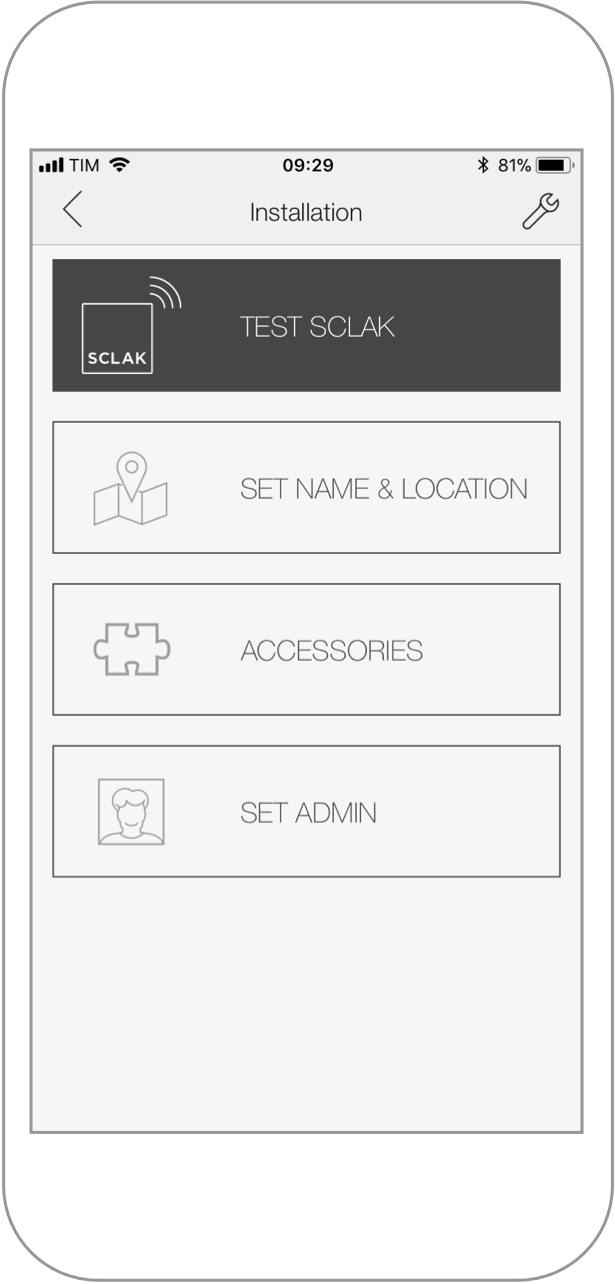

5. SET SCLAK
Set Sclak
Test lock
TEST LOCK
Set unit preferences and test correct operation.
Set name and location
SET NAME AND LOCATION
Set name and description of unit and location.

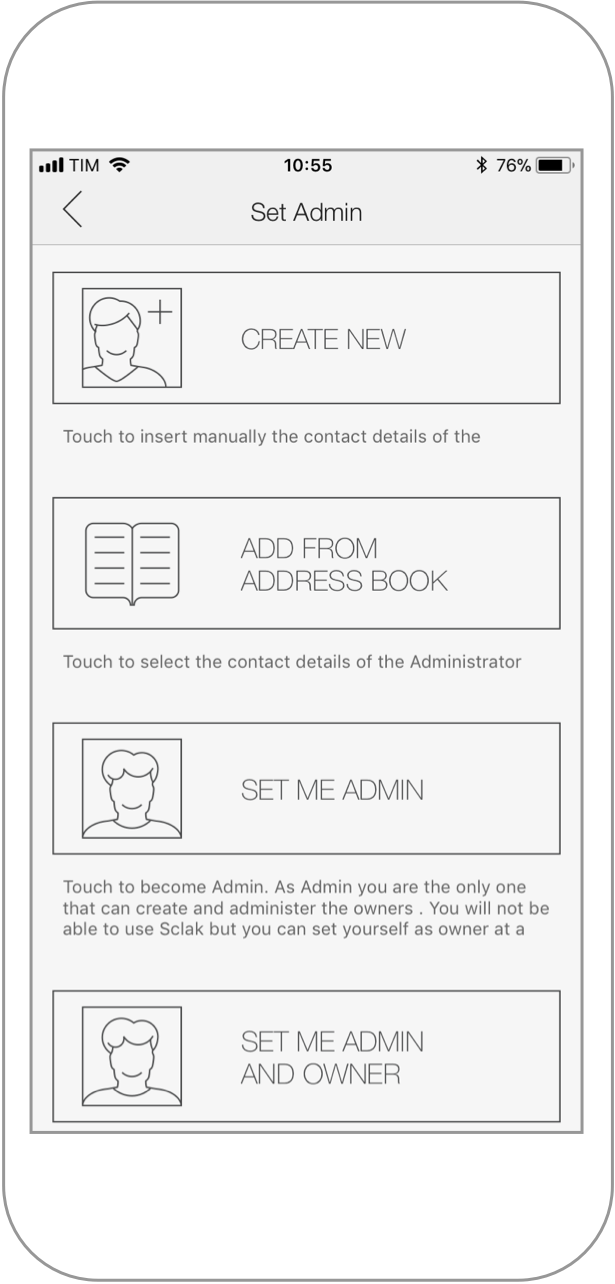

6. Set Admin
Set admin
Create user
SET PERMITS AND SECURITY LEVEL
Enter manually the contact details of the Admin.
Add from address book
ADD FROM ADDRESS BOOK
Select contact details from address book.
Set me as Admin and Owner
SET ME AS ADMIN AND OWNER
Create and manage Owners as Admin
and use SCLAK as an Owner.
SEE INSTRUCTIONS
Install Sclakcylinder step 1

Use a Philips screwdriver to remove the original door lock side of the lock plate lock cylinder scres, and then take out from the lock cylinder.

Install SclakCylinder step 2

Remove the lock cylinder from the door after removing the screw.

Install SclakCylinder step 3

Install the heart lock, remove the screws on the external card reader. External the reader with the lock of the external card.

Install SclakCylinder step 4

The door lock.

Install SclakCylinder step 5

After the new lock passing through the lock body, in the first step to install the screw the screw to fix the new lock cylinder on the position of removing the screw, and then connect the external card reader with heart lock which has passed through the lock body.

Install SclakCylinder step 6

After connecting the external card reader with the new lock, use a Philips. The new lock is installed.

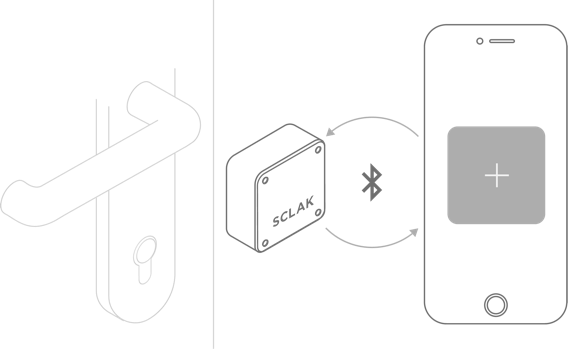

Enable SclakCylinder
SEE INSTRUCTIONS
1. Download App
Download App
2. Insert code
Activation code

Enter the twelve-digit Activation Code inside the package.

3. Create account
Create account

Enter the required credentials. It's required a registration with verified email and password.

Email and password are minimum requirements to create an account. The phone number is an optional data but it's suggested to submit it to increase the account security.

4. Identify your SCLAKCYLINDER
Identify your SCLAKCYLINDER

Select the SCLAKCYLINDER that appears in the DEVICES TO ACTIVATE list and tap on install to continue the installation process.

If the SCLAKCYLINDER doesn't appear on the list, check that the device to be activated is correctly powered.

5. SET SCLAKCYLINDER
Set SclakCylinder
Test lock
TEST LOCK
Set unit preferences and test correct operation.
Set name and location
SET NAME AND LOCATION
Set name and description of unit and location.
6. Set Admin
Set admin
Create user
SET PERMITS AND SECURITY LEVEL
Enter manually the contact details of the Admin.
Add from address book
ADD FROM ADDRESS BOOK
Select contact details from address book.
Set me as Admin and Owner
SET ME AS ADMIN AND OWNER
Create and manage Owners as Admin
and use SCLAK as an Owner.
Sclak keypad
SEE INSTRUCTIONS

INSTALLATION

Install Sclak keypad step 1

Fix the base to the wall.

Install Sclak keypad step 2

After inserting the battery, place the keypad.

Install Sclak keypad step 3

Insert the cover.

Install Sclak keypad step 4

Tighten the cover fixing screws.

ACTIVATION

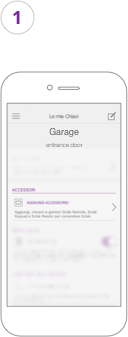

Activation Sclak keypad step 1

Choose a SCLAK to match the accessory from the carousel view, tap on settings () add accessory .

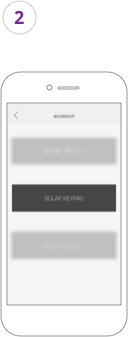

Activation Sclak keypad step 2

Select the device to match.

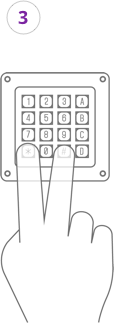

Activation Sclak keypad step 3

Press the * and # keys at the same time until the keypad blinks to activate the device.

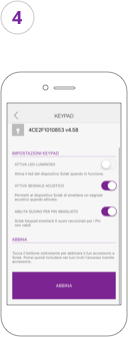

Activation Sclak keypad step 4

Choose device settings and tap MATCH to complete the activation.

Sclak reader
SEE INSTRUCTIONS

INSTALLATION

Install Sclak reader step 1

Remove the device cover and connect the power cables to the terminals on the board. Don't yet stick the cover to the basis.

Install Sclak reader step 2

Connect the power cables to the terminals on the board on the back of the cover. Do not attach the cover to the base yet.

Install Sclak reader step 2

Choose a SCLAK to match the accessory from the carousel view, tap on settings () add accessory .

Install Sclak reader step 2

Select the device to match.

Install Sclak reader step 2

Press the button on the board to activate the device.

Install Sclak reader step 2

Choose device settings and tap MATCH to complete the activation.

Install Sclak reader step 2

Stick the cover to the basis of the device and apply the screws to secure it.

Sclak remote
SEE INSTRUCTIONS

ACTIVATION

Activation Sclak remote step 1

Choose a SCLAK to match the accessory from the carousel view, tap on settings () add accessory .

Activation Sclak remote step 2

Select the device to match.

Activation Sclak remote step 3

Press both buttons until the light doesn't blink anymore to activate the device.

Activation Sclak remote step 4

Choose device settings and tap MATCH to complete the activation.
