Products

A small electronic device with its accessories, manageable from your smartphone, that makes smart every electrical locks or automation and transform it in an integrated access control system.

Notification text here
DATA SHEET
Sclak

SCLAK is compatible with all electric, electromagnetic, electromechanical or mechatronic locks of all brands.

  • Bluetooth connection LE 4.0
  • Security encryption SHA2 protocol
  • Power supply at 12 / 24V AC / DC
  • Battery version 5/12V DC
  • Monostable or bistable relay output, NO/NC mode for 1C version.
  • Operating temperature -20° +60° C
  • Remote access control
  • Internet connection not required
  • Operating temperature -20° +60° C
INSTALLATION>
DATA SHEET
Cylinder technical scheme

SCLAKCYLINDER is compatible with all locks with European standard cylinder of all brands. It doesn't require any wiring. Up to 10,000 battery life openings.

  • Euro Profile cylinder 37,5/37,5 or 35/60 mm
  • Satin chrome or satin brass finish
  • Bluetooth LE 4.0
  • Encrypted communication with SHA2 algorithm
  • 4 batteries AAA 1,5V
  • Owner keys with unlimited validity included
  • No internet connection required
INSTALLATION>

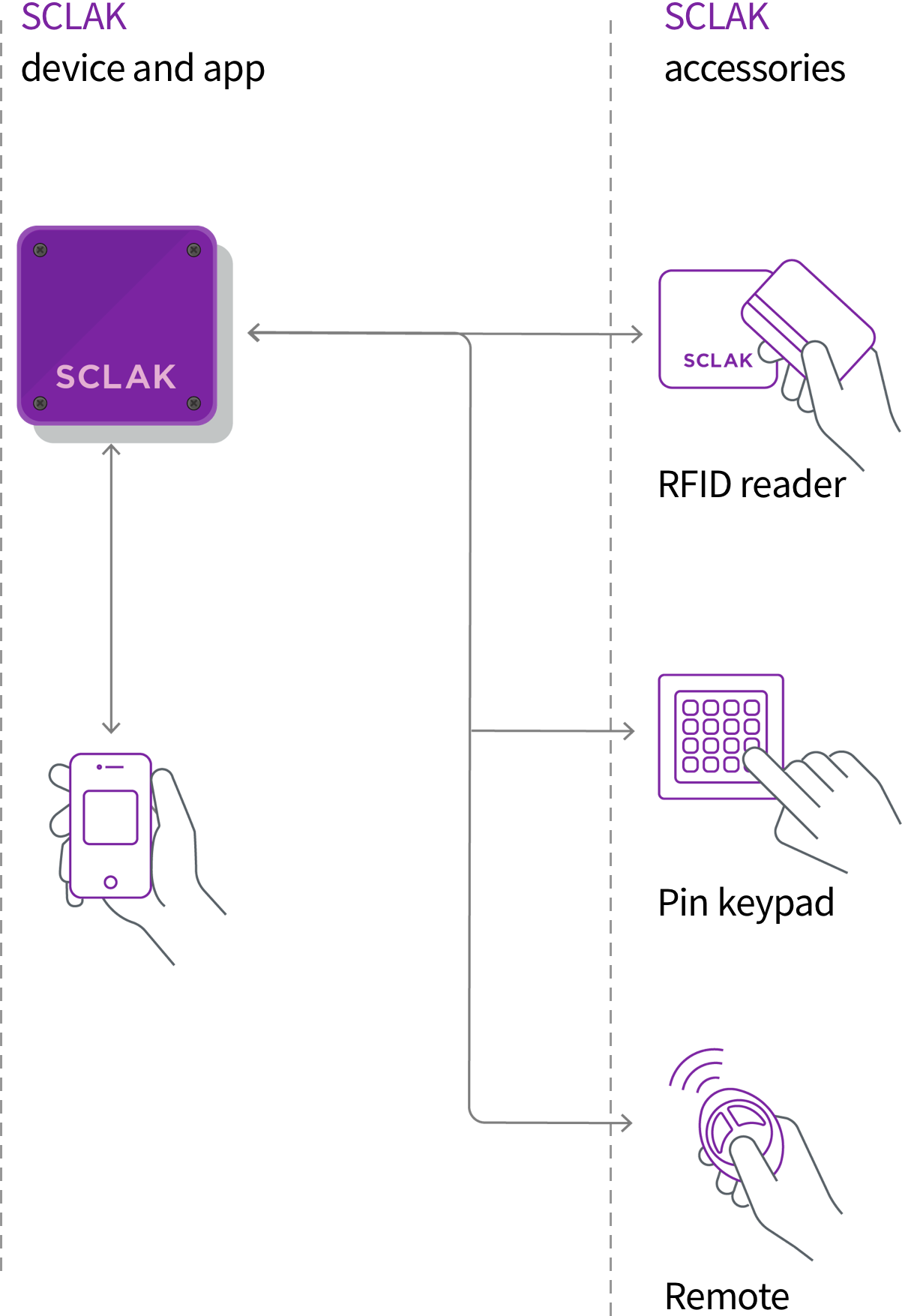

Expand SCLAK skills
All accessories let you expand the possibilities of using SCLAK and SCLAKCYLINDER within a single integrated system.


All devices communicate with Sclak andSCLAKCYLINDER via Bluetooth LE.

Work with sclak
Wireless keyboard powered by battery, let you access with personal codes, programmable from the App and the web.
Keypad power supply
Battery powered
Operating temperature
Temperature range -20° +60°C
Outdoor suitability
Outdoor suitability
Keypad size
  • Bluetooth connection LE 4.0
  • Encrypted communication with SHA2 algorithm
  • Remote access control
  • Pin code with 4.5 or 6 digits up to a maximum of 2000
  • Internet connection not required
  • Lithium battery AA ER14505M 3.6V
  • Backlit keypad
  • IP65 protection
INSTALLATION>
Tag, reader and MIFARE classic badges programmable by App and Web.
Sclak reader
Reader power supply
Supply line powered 12V DC
Mifare
Working with MIFARE classic protocol
Outdoor suitability
Outdoor suitability
Size Reader
  • Bluetooth connection LE 4.0
  • Encrypted communication with SHA2 algorithm
  • Remote access control
  • Internet connection not required
  • IP44 waterproof protection
  • Operating temperature -20° +60° C
INSTALLATION>
Programmable remote control with SCLAK app by which you can manage different openings.
Sclak remote
  • Dimensions: 45 x 55 mm
  • Bluetooth connection LE 4.0
  • Power supply 1 CR2032H 3V lithium battery
